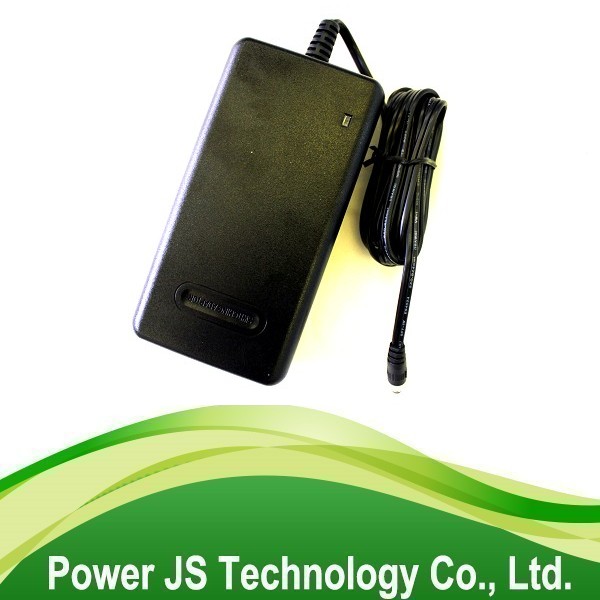

70W Desktop Adaptor


JSDKE6090-12
70W Desktop Adaptor
Switching Adapter
Case Size : 146 x 75.5 x 43 mm

Output Voltage : 3 ~ 48 V。
Output Current : 0.1 ~ 8 A。
Max. Output Power : 90 W。
Ripple.(mV) max. : 250。
Line Regulation : ± 2 %。
Load Regulation : ± 5 %。
Avg.Eff.(%)25, 50, 75, 100% load : 86。
No Load Power Comsumption : < 0.3 W。


Note:
1 Weight : Approx 480g。
2 Optional output connectors。

Description:
Plug - in / Desktop power supply。

Features:
Universal input voltage。
Single output / dual output / triple output。
Pass LPS。
Optional Output Connectors。
Over Voltage Protection。
Over Current Protection。
Short Circuit Protection。
High Efficiency & Reliability。
Compact Low Profile Package。
Two Year Warranty。

SAFETY AGENCY APPROVALS:
TUV, GS, CCC, cUL, UL, CE, SAA, PSE, CB, C-Tick, FC, VI, Energy Star, RoHS, EK。

Specification:
Input voltage : 100 - 240VAC( Limits : 90 - 264VAC ) 。
Input frequency : 50 to 60Hz ( Limits:47 - 63Hz ) 。
Input current: 0.3A ~ 1.6A (rms) for 115 VAC,0.2 ~ 1.2A ( rms ) for 230 VAC。
Safety ground leakage current : Class 1 ( 3.5Ma ) Class 2 ( 0.25mA ) MAX @240 VAC 50Hz。
Output voltage : 3 ~ 48V(±5% tolerance) 。
Output current : 0.1 ~ 8 A。
Output power range : 60 ~ 90 W。
Ripple: 1% peak to peak maximum。
Over voltage protection : N/A 。
Over current protection : All outputs protected to short circuit conditions。
Temperature coefficient : All outputs ± 0.04%/℃ maximum。
Transient response : Maximum excursion of 4% or better on all models. Recovering to 1% of final value within 500us after a 25% step load change。
Operating temperature : 0℃ ~ +40℃。
Storage temperature : -40℃ to +85℃。
Relative humidity : 5% to 95% non - condensing。
Derating : Derated from 100% at+40℃ linearly to 50% at 70℃。
Efficiency : 85% minimum at full output。
Hold-up time : 5 msec minimum。
Line regulation : ± 1% maximum for any input voltage change between input voltage range。
Load regulation : ±5% variations from minimum to maximum output current。
Insulation resistance : 50 Mohm minimum from output to ground。
Inrush current : 15 AMPS @ 115 VAC, or 30 AMPS @ 230 VAC at 25℃ cold start。
Withstand voltage : 4242 VDC from input to output。
Mean time between failure : 100,000 hours minimum at full load at 25℃ ambient。
EMI requirements : Meets conduction limits of(a) FCC PART 15 CLASS B(b) CISPR22.2。
Safety requirements : Meets or exceeds : UL / CUL, CEC, GS, CCC, PSE, CE, BSMI, VCCI, MEPS, K - Mark。
Warranty: 2 year。
